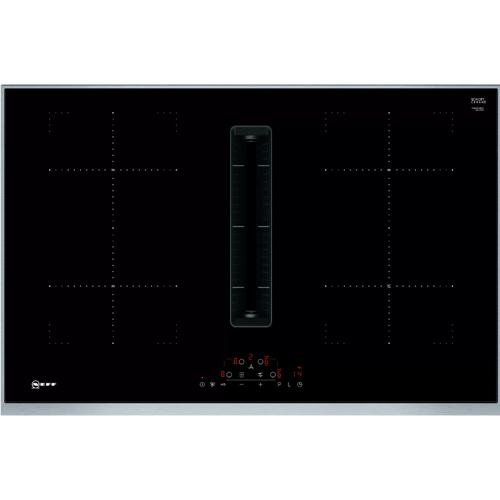

N 70 Induction hob with integrated ventilation system 80 cm T48TD7BN2

This induction hob with integrated ventilation combines two appliances in one for a clear view while cooking.

• Touch Control – a convenient way to control hobs with just one touch.
• Combi Induction - 2 individual induction cooking zones can be combined to 1 large zone with even heat distribution.
• High Extraction Rate – ensures a clear view while cooking thanks to efficient motor technology.
• Reduced Noise – our optimized motor guarantees a quiet cooking experience.
• Space-saving Installation – room for pull-out drawers thanks to the installation of the extractor duct in a lower cabinet.

Integrated ventilation downdraft system

• Induction cooktop with fully integrated high-performance downdraft extractor.
• Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. Accessories for other installation options are available, details in the planning notes.
• Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware.
• Ventilation system with 9 electronically controlled fan power levels and 2 Boost-/Intensive fan power levels (with automatic revert) via Touch control user interface:
• Automatic switch-on of ventilation system when a cooking zone is used.
• Automatic delayed shut-off after cooking to erase residual odours after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually).
• Fully manual control possible via Touch control.
• High-performance, low-noise motor with energy-efficient BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimised interior with enclosed, hidden motor. Highly pressure-drop resistant even with longer and more complex ducting systems.
• Easy-to-detach and easy-to-clean grease filter and liquid collector unit:
• Convenient one-hand removal of unit via floating glass ceramics handle.
• Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %.
• All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant.
• (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate.
• Powerful drainage system for spillages that exceed 200ml of liquids.
• Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below.
• Overall capturing capacity of 900ml (200ml + 700ml).
• Watertight motor system.
• Ventilation system performance:
• Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h .
• Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h.
• Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB  re 1 pW, max. normal setting 69 dB  re 1 pW, max. Boost-/Intensive setting 74 dB  re 1 pW.
• Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB  re 1 pW, max. normal setting 68 dB  re 1 pW, max. Boost-/Intensive setting 72 dB  re 1 pW.
• Grease filter efficiency (according to EN 61591) 94 %.
• Consumption data and energy efficiency (according to Regulation (EU) No 65/2014):
• Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D).
• - Fluid Dynamic Efficiency: A .
• - Average energy consumption: 57 .
• - Grease filtration effciency class: B .
• - Noise min. normal setting & max. normal setting: 42 dB  & 69 dB .
• For recirculation configuration: 2 x 2 battery of directly integrated, high-performance cleanAir odor filters. (sold separately).
• - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish).
• - Large scale filter surface with high odour reduction capabilities.
• - Lifetime of 360 hours of cooking (non-regenerative).
• - Low-noise filters with optimised psycho-acoustics.
• - Easy-to-access and easy-to-remove from above.
• - Replenishment cleanAir filter set Z821VR0 (sold separately).
• For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. (sold separately).

What is an induction hob?

An induction hobs heat the pan not the hob using an electrical current.

Induction hobs can heat a pan faster than a traditional gas or electric hob, and are more energy efficient.  An induction hob can only be used with induction compatible pans.
