touch control

led display

3 speeds plus intensive

2 x 1.5w led light

colour temperature: 3500 k

automatic intensive revert (6mins)

2 metal grease filter cassettes

easy to clean inner frame

for wall mounted installation

black

angled glass design

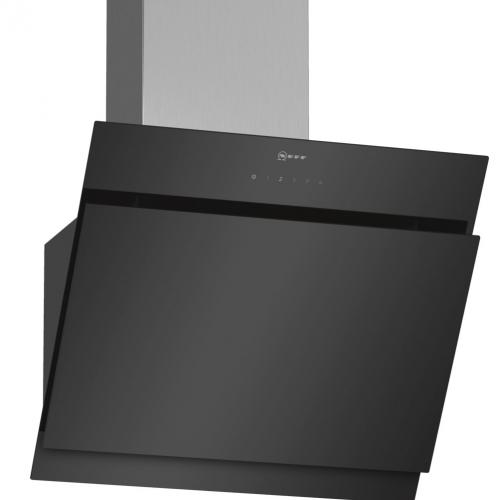

chimney hood

touch control

electronic controls

suitable for ducted extraction and recirculation

for recirculated extraction recirculating kit

or cleanair recirculating kit (accessory) needed

easy installation system

extraction rate according to en 61591 ø 15 cm:

max. normal use 400 m3/h

intensive 660 m3/h

extraction rate according to en 61591 max. 400 m3/h

noise level according to en 60704-3 and en 60704-2-13 at max.

normal use exhaust air: 57 db(a) re 1 pw

(43 db(a) re 20 µpa sound pressure)

noise level according to en 60704-3 and en 60704-2-13 exhaust air:

max. normal use: 57 db(a) re 1 pw

(43 db(a) re 20 µpa sound pressure)

intensive: 66 db(a) re 1 pw

(52 db(a) re 20 µpa sound pressure)

noise level according to en 60704-3 and en 60704-2-13 at maximum normal setting:

extraction rate: 57 db (a) re 1pw

noise max. normal level: 57 db*

light intensity: 90 lux

colour temperature: 3500 k

electrical cable length 1.3 m

diameter pipe Ø 150 mm (Ø 120 mm enclosed)

dimensions exhaust air (hxwxd): 928-1198 x 590 x 499 mm

dimensions recirculating (hxwxd): 988-1258 x 590 x 499 mm

dimensions recirculating with cleanair module (hxwxd):

1118 x 590 x 499 mm - mounting with outer chimney

1188-1458 x 590 x 499 mm - mounting with telescopic chimney

energy efficiency class: a

(at a range of energy efficiency classes from a++ to e)*

blower efficiency class: a*

lighting efficiency class: a*

grease filtering efficiency class: c*

average energy consumption: 52.5 kwh/year*
