Product Infromation: push button control operation

3 power levels

2 x 1.5w led light

colour temperature: 3500 k

2 metal grease filter cassettes

for wall mounted installation

stainless steel

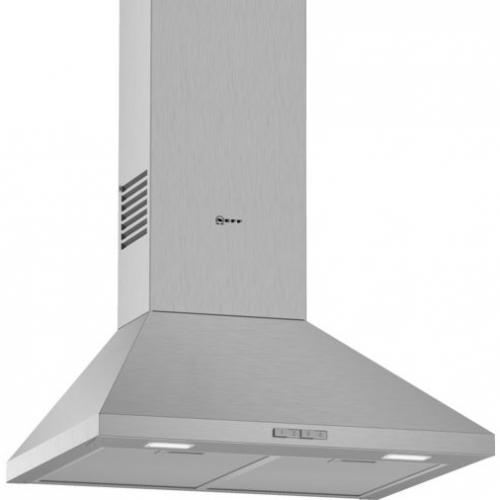

pyramid

chimney hood

push button control operation

mechanical controls

energy efficiency class: c

(at a range of energy efficiency classes from a++ to e)*

max. extraction rate: 360 m3/h

noise max. normal level: 66 db*

suitable for ducted extraction and recirculation for recirculated extraction recirculating kit (accessory) needed

max. extraction rate: 360 m3/h

maximum extraction rate exhaust air 360 m³/h according to en 61591

extraction rate in recirculation mode:

max. normal use: 200 m³/h

noise max. normal level: 66 db*

noise level according to en 60704-3 and en 60704-2-13

at max. normal use exhaust air: 66 db(a) re 1 pw (54 db(a) re 20 µpa sound pressure)

noise level in recirculation mode:

max. normal use: 67 db(a) re 1 pw (55 db(a) re 20 µpa sound pressure)

light intensity: 104 lux

colour temperature: 3500 k

electrical cable length 1.3 m

diameter pipe Ø 150 mm (Ø 120 mm enclosed)

dimensions exhaust air (hxwxd): 799-975 x 600 x 500 mm

dimensions recirculating (hxwxd): 799-975 x 600 x 500 mm

energy efficiency class: c (at a range of energy efficiency classes from a++ to e)*

blower efficiency class: e*

lighting efficiency class: a*

grease filtering efficiency class: c*

average energy consumption: 51.4 kwh/year*
